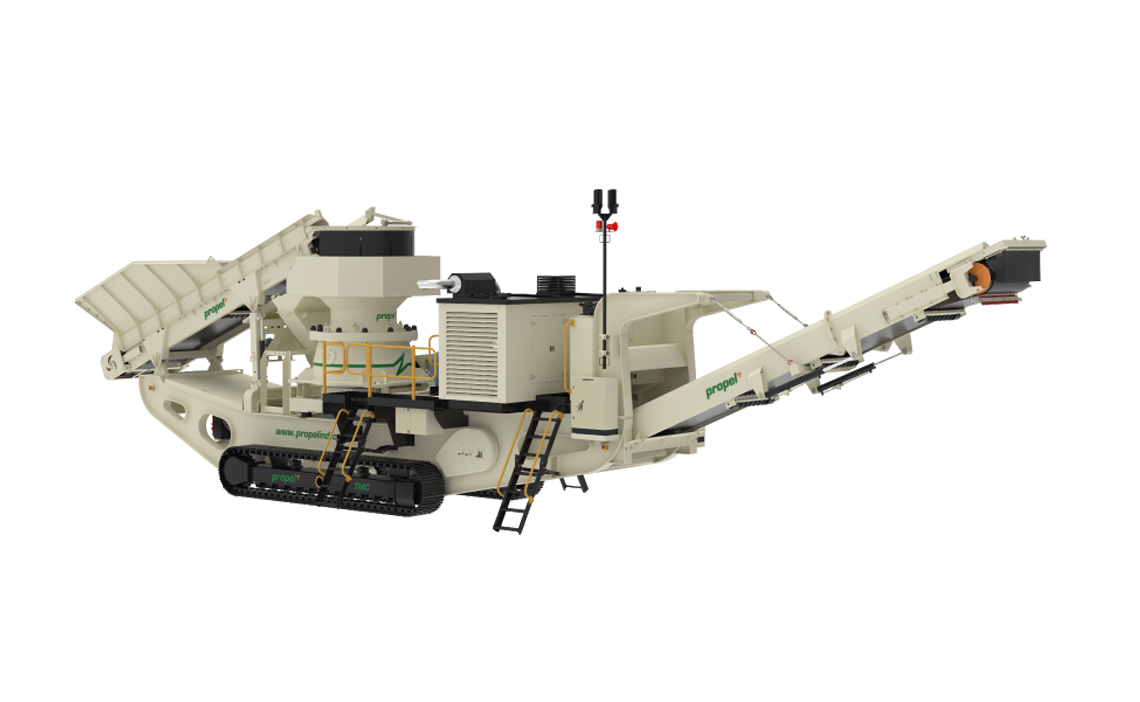

TRACK MOUNTED CONE
TMC AVC SERIES
Propel AVC Series Cone crusher feature a unique combination of crusher speed, throw and cavity design. This combination is known for its revolutionary higher capacity and better product quality. It has been designed to ensure trouble-free operation in heavy and continuous applications.
HIGHLIGHTS
- Heavy duty track unit with dual speed (optional) configuration.
- Safety guards in compliance with machinery directive sturdy walkway with handrails, kick board and access ladders.
- Dual power mode – flexibility to power the plant either by external electric connection or by on-board diesel generator power pack unit (optional).
- Four-point emergency stop. Detachable dog lead control system for marching.
- Radio remote control for marching (optional). Feed level sensor for crusher.
- Electrical driven hydraulic system for quick setup & marching. Low noise acoustic engine canopy with overload protection.
TECHNICAL DATA
| SERIES | UNIT | TMC 220 | TMC 250 | SM 200 | SM 250 | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| Feed Opening Size (W x L) | mm (inch) |
220 (8.7) |
230 (9) |
95 (3.7) |
95 (3.7) |
|||||
| CSS Range | mm (inch) |
24-35 (0.9-1.4) |
26-35 (1 -1.4) |
14-28 (0.6-1.1) |
14-30 (0.6-1.2) |
|||||
| *Capacity | TPH | 140-320 | 160-320 | 120-185 | 150-240 | |||||
| Hopper / Feeder | ||||||||||
| Hopper Capacity | m3 | 6 | 6 | 6 | 6 | |||||
| Feed Belt Width ( mm ) | mm (inch) | 1000 | 1000 | 1000 | 1000 | |||||
| Main Conveyor | ||||||||||
| Belt Width | mm | 1000 | 1000 | 1000 | 1000 | |||||
| Discharge Height | mm | 3600 | 3600 | 3600 | 3600 | |||||
| Stock Pile Capacity | m3 | 69.4 @ 40° | 69.4 @ 40° | 69.4 @ 40° | 69.4 @ 40° | |||||
| Under Carriage | ||||||||||
| Shoe Width | mm | 500 | 500 | 500 | 500 | |||||
| Hydraulic Tank Capacity | Ltrs | 390 | 390 | 390 | 390 | |||||
| Power Unit | ||||||||||
| Engine | Scania DC09 Engine With Alternator CAT C9.3B Engine With Alternator | Cummins QSL9 Engine With Alternator. |
|||||||||
| Diesel Tank Capacity | Ltrs | 500 | 500 | 500 | 500 | |||||
| Dimension | ||||||||||
| Transport ( L x W x H ) | mm (inch) |
15810 X 3400 X 4050 (622.4 x 133.9 x 159.4) |
15810 X 3400 X 4050 (622.4 x 133.9 x 159.4) |
15810 X 3400 X 4050 (622.4 x 133.9 x 159.4) |
15810 X 3400 X 4050 (622.4 x 133.9 x 159.4) |
|||||
| Working ( L x W x H ) | mm (inch) |
17815X4760X4800 (701.4X187.4X189) | 17815X4760X4800 (701.4X187.4X189) | 17815 x 4760 x 4800 (701.4 x 187.4 x 189.0) |
17815 x 4760 x 4800 (701.4 x 187.4 x 189.0) |
|||||
| **Weight | Kg (Ton) |
48000 (48.0) |
48000 (48.0) |
48000 (48.0) |
48000 (48.0) |
|||||
*Details may vary based on application
**Weight inclusive of motor & accessories.
Note: All the above technical details may vary at any time during engineering process & design development
