SAND WASHER
SW SERIES

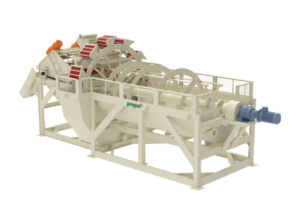

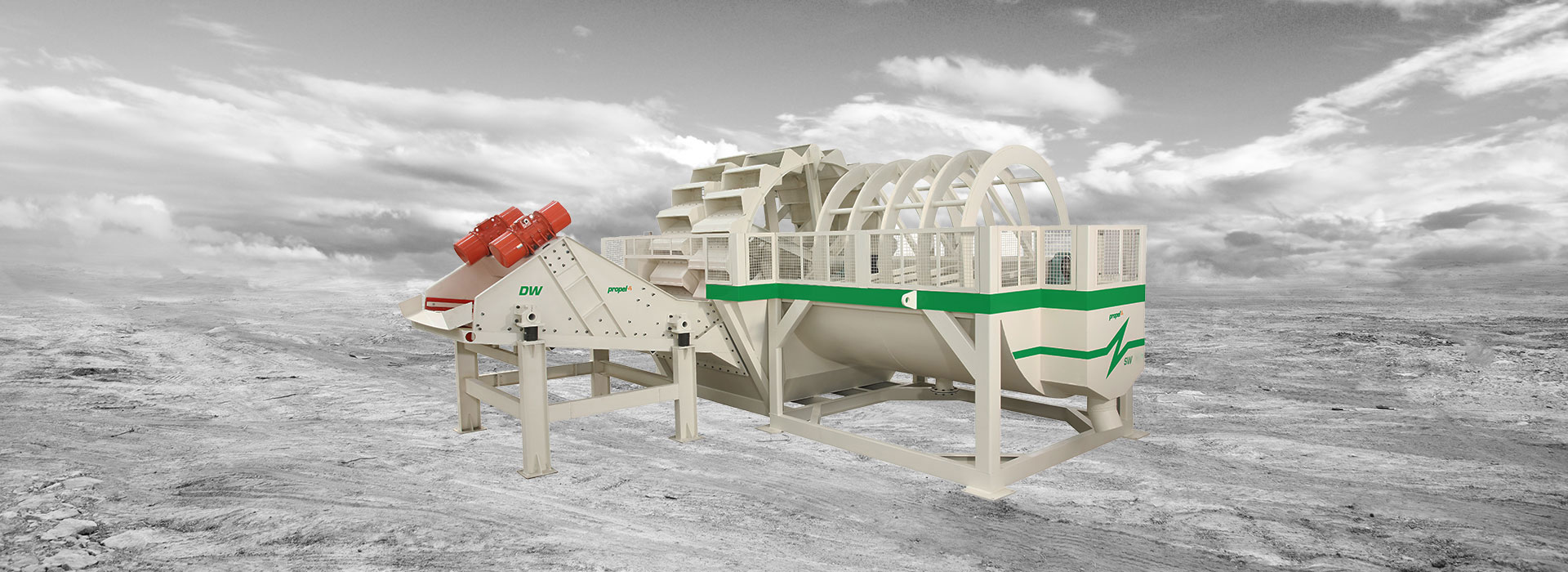

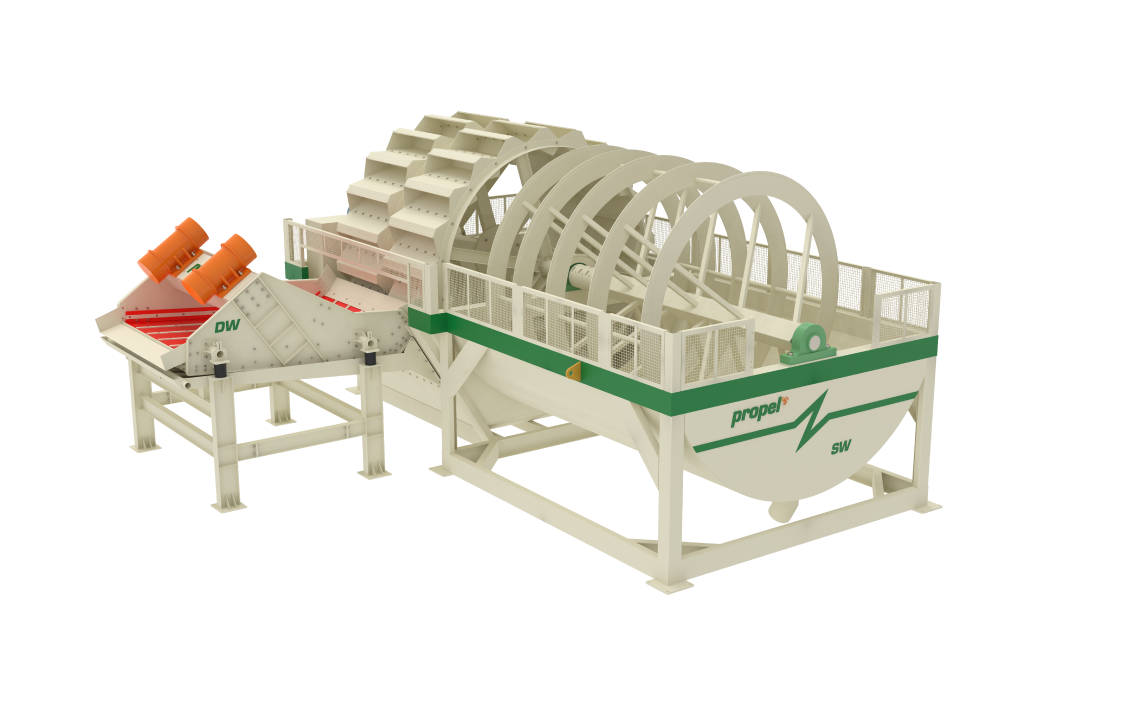

Bucket type sand washing equipment can improve the sand quality. Propel Sand Washers adopt advanced technology for high efficiency sand washing.
HIGHLIGHTS
- Cartridge type bucket wheel and spiral arrangement bucket speed controlled by VFD to control percentage of fines.
- High-tech planetary gear reducer is used for better and efficient maintenance.
- Spiral wheels empowered with hardox liners for wear resistant and long life.
- Total water trough is protected by anti-corrosive special coating.
- In the weir system, the higher the water velocity, more fines are washed away to the settling pond. Lower the water velocity, more fines are saved in the product.
TECHNICAL DATA
| SERIES | UNITS | SW 75 | SW 100 | SW 150 | SW 200 |
|---|---|---|---|---|---|
| *Capacity | TPH | 45 - 60 | 60 - 80 | 90 - 120 | 120 - 160 |
| Wheel diameter | m | 2.27 | 2.5 | 2.75 | 3.1 |
| Number of buckets | m/sec | 34 | 36 | 42 | 42 |
| Screw Diameter |
mm (inch) |
1800 (71.0) |
1700 (67.0) |
2200 (86.6) |
2800 (110.2) |
| Water Tank Capacity | ltrs | 4500 | 5000 | 6000 | 8000 |
| Motor Power |
kW (hp) |
5.5 (7) |
7.5 (10) |
9.3 (12) |
9.3 (12) |
| Weight |
kg (Ton) |
3600 (3.6) |
5200 (5.2) |
7100 (7.1) |
8500 (8.5) |
| DEWATERING SCREEN | |||||
| SERIES | UNITS | SDW 75 | SDW 100 | SDW 150 | SDW 200 |
| Screen Area (Wx L) | mm (Inch) |
900 x 1800 (35.4 x 71.0) |
1200 x 2150 (47.2 x 84.6) |
1500 x 2500 (59.1 x 98.4) |
1800 x 2500 (71.0 x 98.4) |
| *Capacity | TPH | 45 - 60 | 60 - 80 | 90 - 120 | 120 - 160 |
| Operating Angle | deg | 5° | 5° | 5° | 5° |
| Motor Power |
kW (hp) |
2 x 1.13 (2 x 2) |
2 x 1.5 (2 x 2) |
2 x 2.2 (2 x 3 ) |
2 x 3.2 (2 x 4) |
| Weight |
Kg (Ton) |
775 (0.77) |
850 (0.85) |
1300 (1.3) |
1900 (1.9) |
*Details may vary based on application
Note: All the above technical details may vary at any time during engineering process & design development
PLANT INSTALLATION
